Ruffnex Screw
This item is made to order. For competitive prices, fast lead times, further information or to place an order; please contact our friendly sales team of product experts:
Monday - Thursday: 8am - 5:30pm
Friday: 8am - 4pm
Interested in this product?
You can use the form below and email us to enquire about this non-stocked product.
Technical Specifications
- Material - High quality carbon steel
- Length - 32mm
- Head - 8mm Hex head
- Washer - None
- Capability - Fixing into brickwork or concrete beams
- Weight - Up to 2kg depending on length

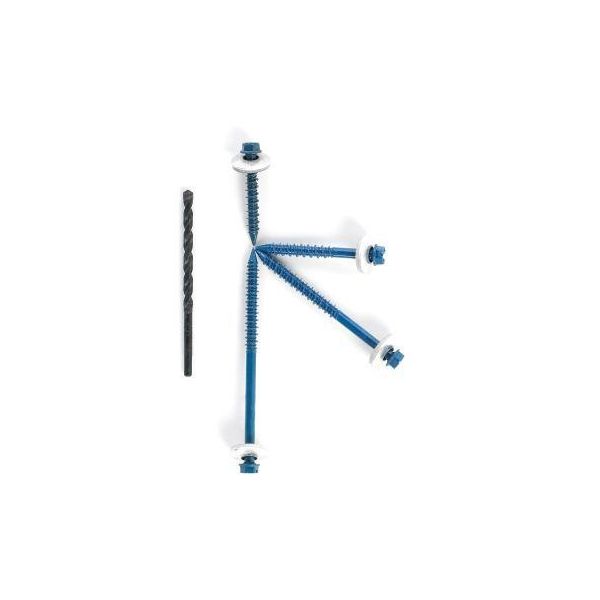

- Ruffnex Drill Screws also refered to as 'Tapcons' are designed to fix sheets to brickwork or concrete beams used in the roofing and cladding industry.
- Self tapping screw which will cut through up to 0.7mm thick steel sheets directly into concrete, brick or blockwork.
- There is no need for plugs.
- High Quality Carbon Steel.
- 8mm Hex Head screw with 19mm washer.
- Comes with a Maisonary Drillbit in instances where you may need to pilot holes.
- If fixing rooflights, you will need to buy 29mm washers and a 29mm RED or Clear cap separately.
- If fixing corrugated 'Wavy' sheets, you will require an M8 Seala Washer and Deep Cover Cap.
- IF FIXING DOWN TO CONCRETE BEAMS, CARE MUST BE TAKEN TO ENSURE THAT THE SUPPORT RODS INSIDE THE CONCRETE ARE NOT HIT
- We supply 32mm (With no washer), 45mm, 57mm, 82mm and 100mm length screws.
- Ideal for older constructions with Concrete Beams
- Can be used to fix to brickwork
- Comes with Drillbit to pre-drill
- High Quality Carbon Steel
- 8mm Head
What is a Ruffnex Screw?
Also known as a Tapcon, this screw is designed to fix into brickwork or concrete beams.
What should I consider when fitting these?
Care needs to be taken with concrete beams to ensure that you do not hit a supporting rod as this will ‘blow out’ the concrete beam.
What material are these made from?
High Quality Carbon Steel
Do I need a drillbit for these?
You will not require a drillbit, each pack is supplied with one.
