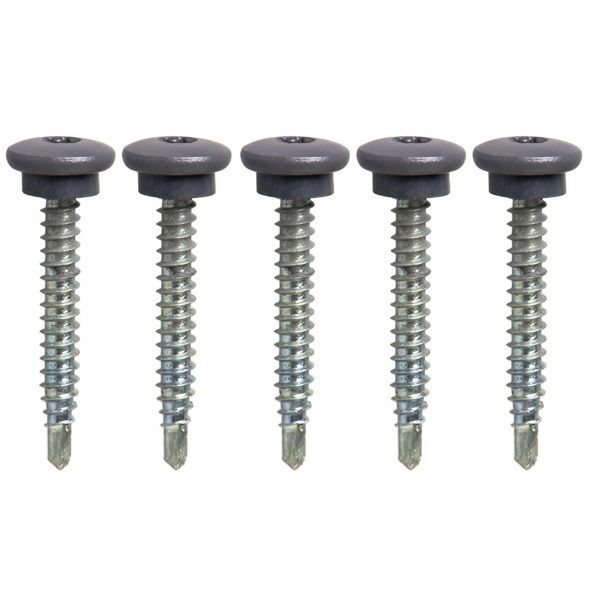

35mm Low Profile Woodtek Drillscrews with Coloured Coated Heads
This item is made to order. For competitive prices, fast lead times, further information or to place an order; please contact our friendly sales team of product experts:
Monday - Thursday: 8am - 5:30pm
Friday: 8am - 4pm
Interested in this product?
You can use the form below and email us to enquire about this non-stocked product.
Technical Specifications
- Type - Woodtek
- Length - 35mm
- Diameter - 4.8mm
- Head - Colour Coated Pan Head
- Drilling - Self Tapping
- Material - Carbon Steel
- Washer - 11mm EPDM
- These fixings have colour coated low profile heads to match the colour of the tile effect roof sheets and flashings.
- Available in Terracotta (BSÂ 04C39) & Anthracite (RAL 7016)
- Comes complete with 11 EPDM washer for water tightness
- Should be fixed in the valley of the metal tile profile (not the crown).
- A special drill bit is required to use these fastenings
- Colour matched to the sheet
- Self-tapping (no pre-drilling required)
- Comes with 11mm EPDM washer
- Low profile to not stand out
Where should I use the woodtek drillscrew?
The woodscrew should be fitted in the valley of the tile profile (not the crown).
How many fixings do I need for a sheet?
There is no exact amount for a sheet, you would need 4 fixings per fixing point of a sheet. As an example, if you had 4 purlins down the sheet you would use 4 fixings per purlin, so a total of 16 fixings would be required for the sheet.
What type of fixing head is on this fixing?
The tile effect stitchers come with a low-profile pan head which is painted to the same colour as the sheets.
Does this fixing come with a washer?
Yes, these stitchers come with an 11mm EPDM washer already applied to them.
What drill bit do I use to fix these?
These woodteks require a special torx drill bit.
Do I need to pre drill the fixing holes?
No, these fixings are self-tapping and require no pre drilling.
