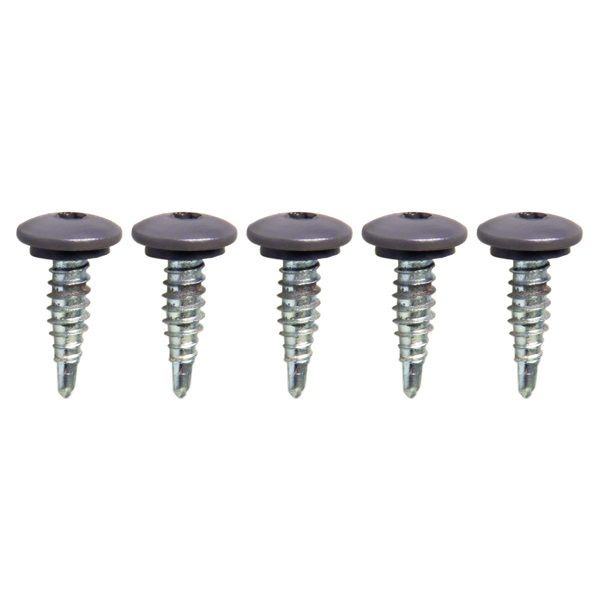

22mm Low Profile Stitcher Drillscrews with Coloured Coated Heads
This item is made to order. For competitive prices, fast lead times, further information or to place an order; please contact our friendly sales team of product experts:
Monday - Thursday: 8am - 5:30pm
Friday: 8am - 4pm
Interested in this product?
You can use the form below and email us to enquire about this non-stocked product.
Technical Specifications
- Type - Stitcher
- Length - 22mm
- Diameter - 4.8mm
- Head - Colour Coated Pan Head
- Drilling - Self Tapping
- Material - Carbon Steel
- Washer - 11mm EPDM
- These fixings have colour coated low profile heads to match the colour of the tile effect roof sheets and flashings.
- 4.8mm diameter
- Available in Terracotta (BS 04C39) & Anthracite (RAL 7016)
- Comes complete with 11mm EPDM washer for water tightness
- Should be used on the side overlaps of the metal roof sheets and also to secure the flashings down to the crowns of the sheets.
- A special drill bit is required to use these fixings
- Colour matched to the sheet
- Self-tapping (no pre-drilling required)
- Comes with 11mm EPDM washer
- Low profile to not stand out
Where should I use these stitcher screws?
These stitcher screws should be fitted on the side overlaps of the tile effect sheets.
What spacings should I fit the stitcher screws at?
Stichers screws should be spaced every at around every 500mm.
What type of fixing head is on this fixing?
The tile effect stitchers come with a low-profile pan head which is painted to the same colour as the sheets.
Does this fixing come with a washer?
Yes, these stitchers come with an 11mm EPDM washer already applied to them.
What drill bit do I use to fix these?
These stitchers require a special torx drill bit.
Do I need to pre drill the fixing holes?
No, these fixings are self-tapping and require no pre drilling.
